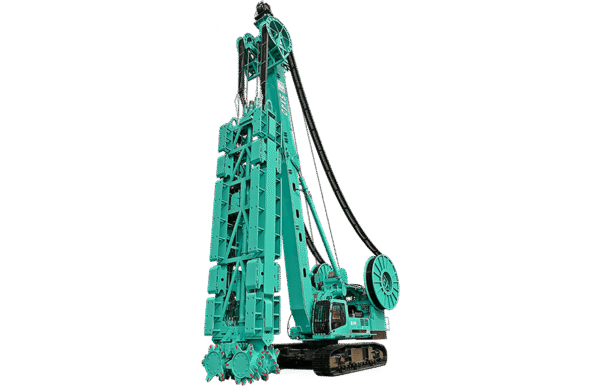

SX40-A

Caractéristiques techniques - SX40-A

Wall width	0.8–1.5 m
Wall depth	80 m
Output torque of trench cutter	120×2 kN·m
Rotation speed Max of trench cutter	0–25 rpm
Pull force of winch	2×350 kN
System pressure	33 MPa
Main pump flow	2×380 + 130 + 330 L/min
Weight of Cutter Wheel	40 (B=1500) t
Total Weight (w/o cutter wheel)	98 t
Diesel	Cummins QSM11
Power Rotation speed	300 @ 1900 rpm
Electric motor	Y315S + Y225M
Power	110 + 45 kW
Model of undercarriage	SH36-R455LC-7 JT90
Track shoe outer distance	3450–4600 mm
Track shoes width	800 mm
Towing force	630 kN
Crawler speed	1.5 km/h
