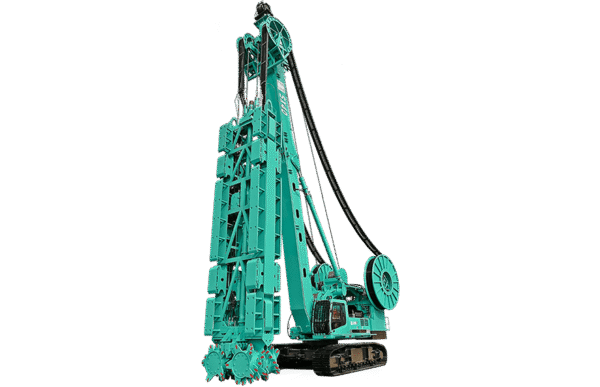

SX50

Caractéristiques techniques - SX50

Wall Width	0.8–1.5 m
Wall Depth	120 m
Output Torque of Trench Cutter	100×2 / 160×2 kN·m
Rotation Speed Max of Trench Cutter	0–25 / 0–15 rpm
Pull Force of Winch	2×400 kN
System Pressure	33 MPa
Main Pump Flow	2×435 + 144 + 400 L/min
Weight of Cutter Wheel	40–50 t (B=1500)
Total Weight (w/o Cutter Wheel)	128 t
Diesel Engine	Cummins QSX15
Power Rotation Speed	380 kW @ 1800 rpm
Electric Motor	Y315L
Power	160 kW
Model of Undercarriage	JT100
Track Shoe Outer Distance	3500–5000 mm
Track Shoe Width	900 mm
Towing Force	818 kN
Crawler Speed	1.5 km/h
